Kaisi 3005D+|Power Supply*4 groups of memory*4 digital display(SKU:1496320)

Descripción

"*4 groups of memory*4digital display for current and voltage*Intelligent overcurrent protection*Stable constant pressure,constant current*Numerical lock function*Numerical storage function"

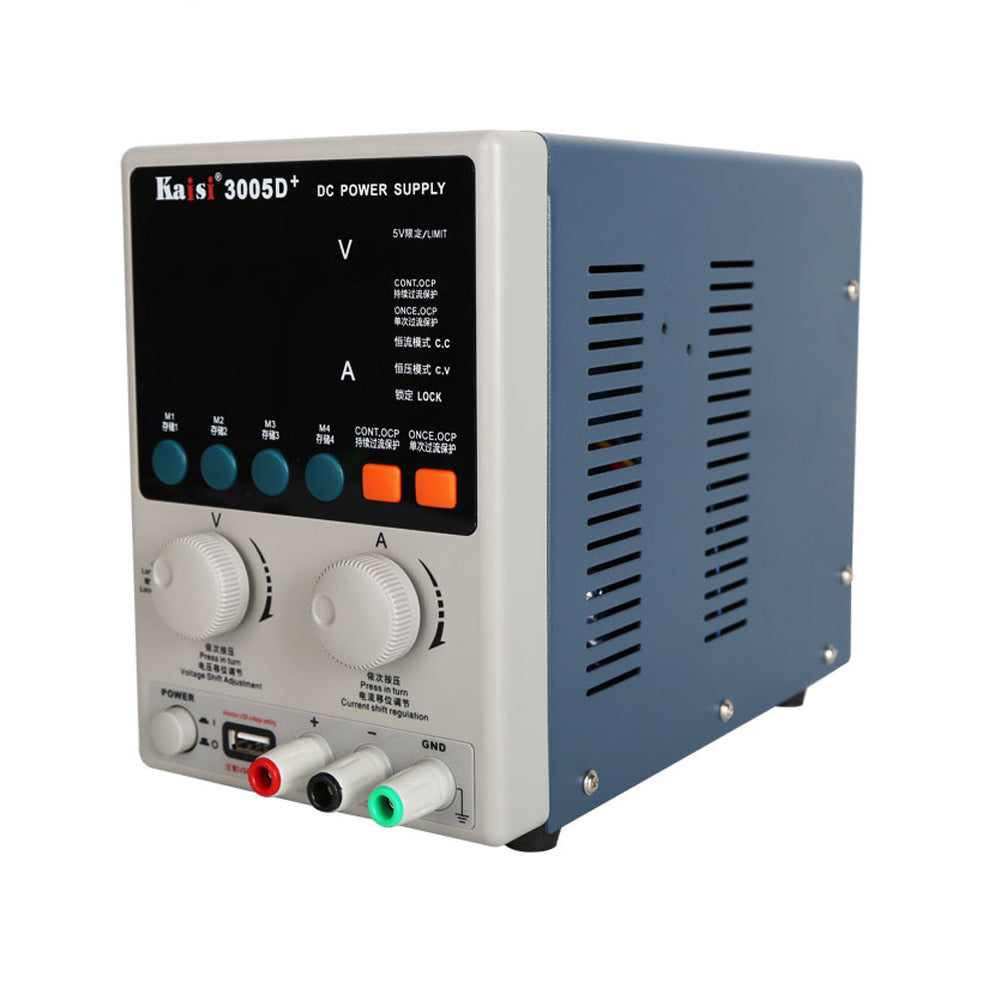

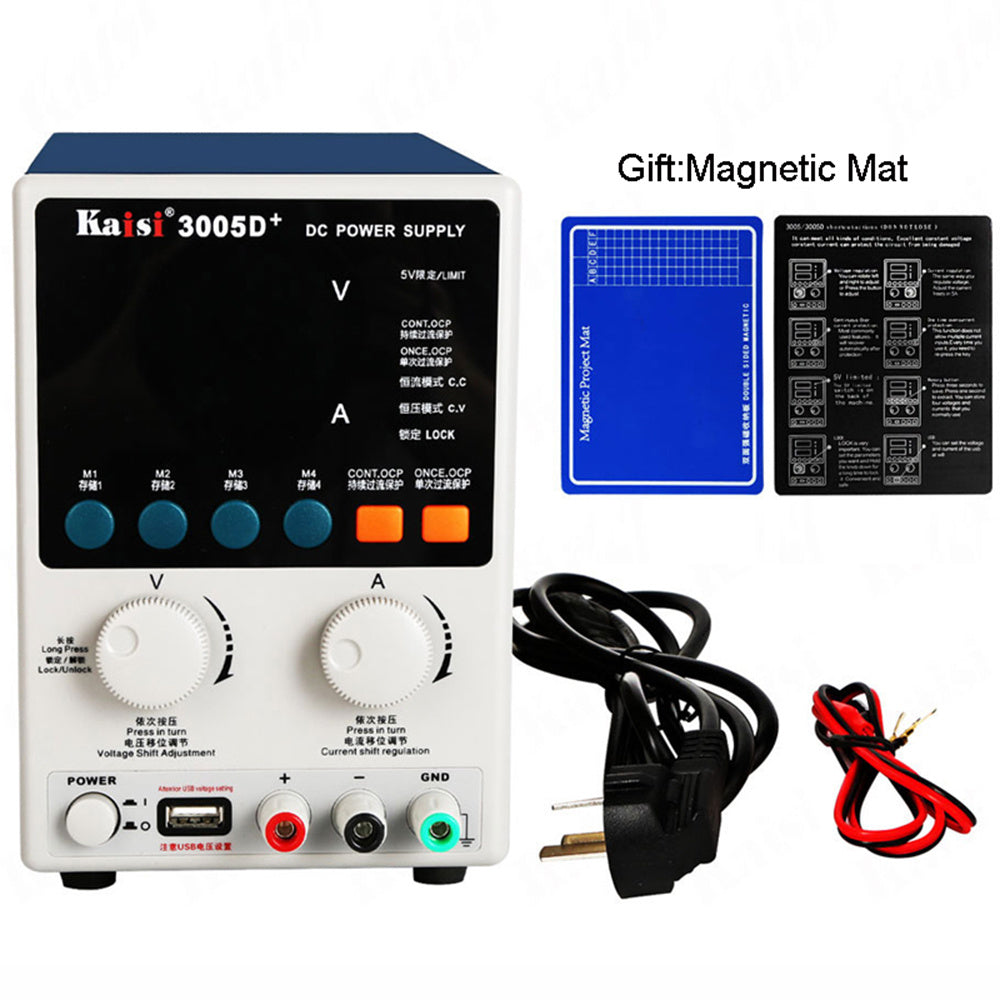

Kaisi 3005D+ 30V/5A Adjustable Digital CNC DC Power Supply

Features:
  • 30V/5A full digital power control single
  • 10mV/1mA high accuracy and resolution
  • Low noise and ripple
  • CV/CC given voltage and constant current mode
  • Highly reliable OCP, OVP, arbitrarily set protection
  • Built-in set of parameters stored
  • Outputs a switch control
  • Power and memory function
  • Keypad lock to prevent misuse
  • An intelligent temperature control fan, effectively reduce the noise
  • An easy alternative to traditional digital power
  • Precisely generate the required voltages and currents.
  • 0-30V adjustable DC output high-precision.
  • 10mV and 1mA resolution
  • Professional power supply design with intuitive operability.
  • Simple and intuitive operation, fast and accurate selection of voltage and current can be realized.
  • To prevent damage to the load can be set to the value of over-voltage protection and over-current protection to prevent the voltage regulator from beyond the threshold can
  • The keyguard lock panel buttons to prevent undesirable results in the key test engineering
  • Just press the button to recall and save area a key to bring up the user to store the data and save user settings

Specification:
Operating Conditions:
  • Input voltage: 220V / 110V
  • Frequency range: 50- 60Hz
  • Operating temperature : 32-104 ℉ (0-40 ºC)
  • Operating humidity : < 80%RH
  • Storage temperature : 32-158 ℉ (0-70 ºC)
  • Storage humidity : < 70%RH

Stable Voltage:
  • Output Voltage Range: 0-30V Continuously adjustable
  • Setup Resolution : 10mV
  • Setup Accuracy : <0.05% +20 mV
  • Ripple : < 1mVRMS
  • Read back Accuracy: 10 mV
  • Temp. Coefficient : < 0.1% + 10mV
  • Read back Temp. Coefficient : < 100 ppm+10mV

Stable Current:
  • Output Current Range: 0-5A Continuously adjustable
  • Setup Resolution : 1 mA
  • Setup Accuracy : <0.1% +3mA
  • Ripple : < 3mARMS
  • Read back Accuracy: 1mA
  • Temp. Coefficient : < 0.1% + 5mA
  • Read back Temp. Coefficient : < 100 ppm+5mA


Package includes:
  • 1 x Adjustable DC Power Supply
  • 1 x  Power line
Forma del producto

"*4 groups of memory*4digital display for current and voltage*Intelligent overcurrent protection*Stable constant pressure,constant current*Numerical lock function*Numerical storage function" Kaisi 3005D+ 30V/5A Adjustable... Leer más...

SKU: 1496320

$62.36 Sin IVA

    Descripción

    "*4 groups of memory*4digital display for current and voltage*Intelligent overcurrent protection*Stable constant pressure,constant current*Numerical lock function*Numerical storage function"

    Kaisi 3005D+ 30V/5A Adjustable Digital CNC DC Power Supply

    Features:
    • 30V/5A full digital power control single
    • 10mV/1mA high accuracy and resolution
    • Low noise and ripple
    • CV/CC given voltage and constant current mode
    • Highly reliable OCP, OVP, arbitrarily set protection
    • Built-in set of parameters stored
    • Outputs a switch control
    • Power and memory function
    • Keypad lock to prevent misuse
    • An intelligent temperature control fan, effectively reduce the noise
    • An easy alternative to traditional digital power
    • Precisely generate the required voltages and currents.
    • 0-30V adjustable DC output high-precision.
    • 10mV and 1mA resolution
    • Professional power supply design with intuitive operability.
    • Simple and intuitive operation, fast and accurate selection of voltage and current can be realized.
    • To prevent damage to the load can be set to the value of over-voltage protection and over-current protection to prevent the voltage regulator from beyond the threshold can
    • The keyguard lock panel buttons to prevent undesirable results in the key test engineering
    • Just press the button to recall and save area a key to bring up the user to store the data and save user settings

    Specification:
    Operating Conditions:
    • Input voltage: 220V / 110V
    • Frequency range: 50- 60Hz
    • Operating temperature : 32-104 ℉ (0-40 ºC)
    • Operating humidity : < 80%RH
    • Storage temperature : 32-158 ℉ (0-70 ºC)
    • Storage humidity : < 70%RH

    Stable Voltage:
    • Output Voltage Range: 0-30V Continuously adjustable
    • Setup Resolution : 10mV
    • Setup Accuracy : <0.05% +20 mV
    • Ripple : < 1mVRMS
    • Read back Accuracy: 10 mV
    • Temp. Coefficient : < 0.1% + 10mV
    • Read back Temp. Coefficient : < 100 ppm+10mV

    Stable Current:
    • Output Current Range: 0-5A Continuously adjustable
    • Setup Resolution : 1 mA
    • Setup Accuracy : <0.1% +3mA
    • Ripple : < 3mARMS
    • Read back Accuracy: 1mA
    • Temp. Coefficient : < 0.1% + 5mA
    • Read back Temp. Coefficient : < 100 ppm+5mA


    Package includes:
    • 1 x Adjustable DC Power Supply
    • 1 x  Power line
